Delta Engineering - Gas Appliances & Services

Products - Jan 2023

Please note that we are wholesalers and we do not supply to the public directly.

For customers in the Eastern Cape, please feel free to contact our Agent in Port Elizabeth (Gqeberha) Fennell’s Gas & Appliances

GAS GEYSERS

MODEL	DESCRIPTION

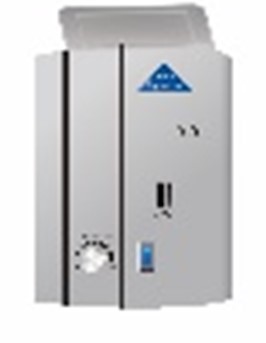

	5.5 LITRE OVER BASIN/SINK – TYPE A – CODE KCG55Z (11kW) (battery operated) ZERO (LOW PRESSURE) START - TYPE ‘A’- FLUELESS INDOOR INSTALLATION WITH ODS (SEE ABOVE) OVER SINK/BASIN/ANY SMALL INDOOR NEEDS Can be used with domestic cylinders 3-6KG with a 1kg/hr 3/8 BSP right hand regulator for 3 – 6 kg cylinders, or 5/8” left hand regulator on a 9 kg and above size cylinders. Neat, Compact, easy on the eye, Economical – very low gas consumption with instant hot water – saves water and energy (Carton: 570x340x180mm – 5,2 kg)

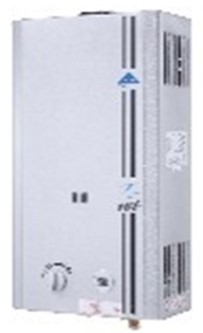

	DIAPHRAGM UNITS - TYPE ‘D’ - FOR OUTSIDE INSTALLATION ONLY – 202 STAINLESS STEEL COVER – STAINLESS STEEL FLUE AVAILABLE. FITTING A FLUE IS RECOMMENDED (battery operated)
KCG12LS	12 LITRE GEYSER
KCG16LS	16 LITRE GEYSER

	ZERO START UNITS – TYPE ‘B’ - FOR INDOOR/OUTDOOR INSTALLATION – SILVER WITH LCD SCREEN, WITH STAINLESS STEEL FLUE INSIDE BOX This is a forced exhaust unit. Can start on lower water pressure than the diaphragm models, features hydro water intake with magnetic spark activator – a higher water pressure does not present any problems.
KCG09Z	9 LITRE (Carton: 640x520x250mm – 8.5kg)
KCG12Z	12 LITRE
KCG16Z	16 LITRE
KCG20Z	20 LITRE

	ZERO START UNITS – TYPE ‘D’ - FOR OUTDOOR INSTALLATION ONLY – SILVER WITH LCD SCREEN, NO FLUE PROVIDED (BUT RECOMMENDED THAT ONE BE USED) THIS IS A FORCED EXHAUST UNIT (DRAUGHT PRINCIPLE). STARTS UP ON A MUCH LOWER WATER PRESSURE THAN A DIAPHRAGM TYPE GEYSER. (battery operated)
KCG09ZN	9 LITRE
KCG12ZN	12 LITRE
KCG16ZN	16 LITRE
KCG20ZN	20 LITRE

	CONSTANT TEMPERATURE UNITS – TYPE ‘D’– FOR OUTDOOR INSTALLATION ONLY - SILVER WITH LCD SCREEN – AUTO TEMPERATURE CONTROL, FEATURES A PROPORTIONAL VALVE – NO FLUE PROVIDED (battery operated)
KCG12CTD	12 LITRE D
KCG16CTD	16 LITRE D

	FAN FORCED WITH CT FUNCTION, ZERO START, TYPE ‘B’ FOR INDOOR INSTALLATION (OR OUTDOOR, BUT MUST BE INSIDE A WATERPROOF WEATHER BOX, HOWEVER THIS IS NOT RECOMMENDED), WITH LCD SCREEN, AUTO TEMPERATURE CONTROL, AND FEATURING A PROPORTIONAL VALVE. OFFERS EXTREMELY ECONOMICAL USE OF LP GAS, LOW WATER PRESSURE START – WITH STAINLESS STEEL FLUE IN BOX. THIS UNIT WILL KEEP THE HOT WATER TEMPERATURE AT YOUR SETTING REGARDLESS OF CHANGES IN AMBIENT TEMPERATURE. (REQUIRES ELECTRICITY TO OPERATE)
KCG12FFZ	12 LITRE – B-TYPE
KCG16FFZ	16 LITRE – B TYPE

	FAN FORCED CONSTANT TEMPERATURE, ZERO START, TYPE ‘D’ WEATHERPROOF FOR OUTDOOR INSTALLATION ONLY, WITH LCD SCREEN, AUTO TEMPERATURE CONTROL, AND FEATURING A PROPORTIONAL VALVE. OFFERS EXTREMELY ECONOMICAL USE OF LP GAS, LOW WATER PRESSURE START – NO FLUE (REQUIRES ELECTRICITY OT OPERATE)
KCG16FFD	16 LITRE – D TYPE
KCG26FFD	26 LITRE – D TYPE

KCG12BFZ	DELTA ENGINEERING BALANCED FLUE UNIT: 12 LITRE for Indoor installation This unit has all the features of our other Delta fan force units, BUT: Has a sealed combustion burner section. Draws the Oxygen from outside and expels combustion to the outside with a double exhaust. (included) And because the unit draws Oxygen from the outside, there is no need for cross-ventilation and it can be installed in confined spaces, as long as it does not overheat.

	NEW GENERATION ‘JET FIN’ WATER INTAKE GEYSERS – TYPE D – ZERO This new generation zero type geyser has been redesigned with a more stable ignition system that reduces the chances of damage by sand and other impurities in the water. It also offers many other positive attributes such as a more stable water inlet pressure and water flow. Eliminates ‘dry burn’ damage to heat exchanger, as well as battery power drain.
KCG10UZN	10 LITRE – TYPE D
KCG12UZN	12 LITRE – TYPE D
KCG14UZN	14 LITRE – TYPE D

WEATHER BOXES, COVERS, ROOFS, CAGES FOR GEYSERS

DE2	Weather Box – Small, compact, foldable 8-12 litre with flue hole - galvanised
DE4	Weather Box – large, compact, foldable 16-28 Litre with flue hole - Galv
WB000	Weather Box – 6-12 Litre - Galvanised
WB002	Weather Box – 16-28 Litre - Galvanised
GR110	Roof for Geyser - 110 mm
GR130	Roof for Geyser - 130 mm

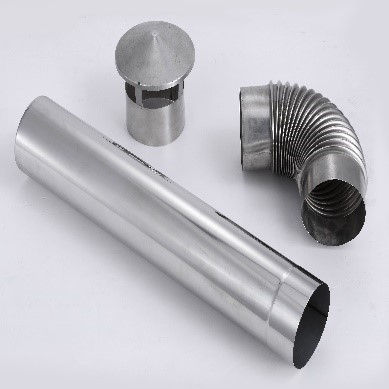

BENDS, CAPS AND FLUES – STAINLESS STEEL

BEND 1	BEND FOR FLUE – 110mm
BEND 2	BEND FOR FLUE – 130mm
BEND127	BEND FOR FLUE – 127mm
CAP1 & CAP1D	CAP/COWL FOR FLUE SINGLE OR DUAL – 110mm
CAP2 & CAP2D	CAP/COWL FOR FLUE SINGLE OR DUAL – 130mm
FLUE1	FLUE – 110mm x 600 mm
FLUE3	FLUE – 130mm x 600 mm 14-18 Litre
FLUE2-FL130	FLEXIBLE ALUMINIUM FLUE WITH 2 CLIPS – 130mm
FLUE2-FLEX	FLEXIBLE ALUMINIUM FLUE WITH 2 CLIPS – 110mm

PIGTAILS, VALVE & WALL BRACKET

KC1005W	Wall Bracket for Regulator
KC1005P	Pigtail
KC1005P-1	Pigtail – 1 metre
KC1005V	Valve - Changeover

SEALS, WASHERS AND SIGNAGE, ODDMENTS

G078	Seal for F12 - Black (NASB)
DELCW	Washer - Cooker
G089	Washer - Neoprene
INS01	Sign - Gas Reticulation
SSV01	Sign - Shut off
B12SS	Fitting – ½” B for SS Flex Tubing
B34SS	Fitting – ¾” B for SS Flex Tubing
DIYBC	DIY Burner Complete
G099M	Gas Hose – Orange – per metre

FILTERS – GAS OR WATER

WF100

WATER FILTER – for installation on the water feed line to prevent dirt and debris in the water from entering the geyser

GF200

GAS FILTER – for installation on the gas feed line to prevent dirt and debris in the gas from entering the geyser

REGULATORS

SA3	Regulator – L-Shape, 1 Kg for various appliances for 3-6kg household cylinders
SA5	Regulator – 1 kg Bullnose for various mobile appliances – 9kg and upwards
SA4	2.8 kPa 4kg – for most gas appliances with multi installations, like geyser, stove, BBQ – with bracket
73149	Regulator – 4 KG with Bracket – NO PRV
93129	Regulator – High Pressure with Hand Wheel & Hose Tailpiece
KC1005HC	Hose/Regulator Kit in Clamshell Pack (Bullnose Reg, 1.5 m hose, 2 x Clamps)

COOKER TOPS
with “O” ring jet, no tools required to change jet!!

G007	Cooker Top 240 mm (Stainless Steel Burner)
G007-3	Cooker Top 300 mm (Stainless Steel Burner) EXTRA LARGE

2 BURNER TABLE TOP STOVE

PLEASE NOTE THAT THIS STOVE IS SUPPLIED WITHOUT HOSE, CLAMPS, AND REGULATOR

GS2000 Top Quality, full Stainless Steel Table Top Stove, with ‘Tornado’ burners, which give full pot coverage and 30% energy savings

GS2000-H With Cast Iron Honey-comb’ Burners

STOVES AND HOBS

	KZ560 – 4 BURNER GAS STOVE WITH GAS OVEN 4 Burners: 2 x Large Rapid Burners 2 x Medium Rapid Burners Glass Anti-splatter lid 58 Litre Oven Bake function only Includes all-in-one oven pan/bottom tray, and a grid Double glass for oven door for better heat retention Stove and Oven fitted with FFD (Flame Failure Devices) as per SANS1539-2017 SPARE GRIDS AND PANS AVAILABLE

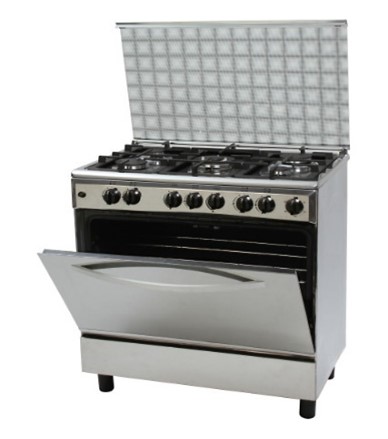

	KZ760-S5 – 5 BURNER ALL NEW STAINLESS STEEL GAS STOVE WITH GAS OVEN NEW LOOK, NEW FEATURES! 5 Burners: 1 x large, 2 medium, 2 small. Glass anti spatter lid, 105 Litre Oven; Bake and Grill Function (Top and Bottom burners). Timer, Grid and drip tray, Double Glass for oven door for better heat retention , Electric Auto ignition on top plates and oven/griller Vitreous Enamelled Cast Iron grids/pot stands Stove and Oven fitted with FFD (Flame Failure Devices) as per SANS1539-2017

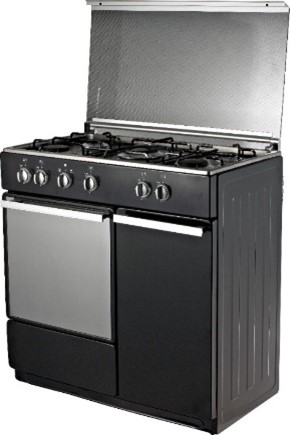

	KZ720 – 5 GAS STOVE WITH GAS OVEN & SIDE CABINET 5 Burners 1 x Triple wok Burner 2 x Large Rapid Burners 2 x Medium Rapid Burners 48 Litre Oven Bake and Grill Function Includes all in one Oven Pan/Bottom Tray, and a Grid Double Glass for Oven Door for better heat retention Battery ( 1 x size D) powered auto ignition on top plates Battery (1 x size D) powered auto ignition for Oven and Grill Vitreous Enamelled Cast Iron Grids/Pot Stands Complete with Glass Lid Cabinet for easy storage of Gas Cylinder Stove and Oven fitted with FFD (Flame Failure Devices) PLEASE NOTE: REGULATOR, HOSE AND 2 x CLAMPS SUPPLIED FOR DIY INSTALLATION, I.E. CYLINDER INSIDE VENTILATED CABINET ON THE KZ720 ABOVE. A FIXED INSTALLATION WITH CYLINDER OUTSIDE REQUIRES PROFESSIONAL INSTALLATION AND A CERTIFICATE OF COMPLIANCE (COC)

	DELTA HG012 - 2 BURNER GAS HOB Top Quality full Stainless Steel 2 Burner Hob, with cast iron pot holders and fully adjusting knobs.

	DELTA HG014 - 4 BURNER GAS HOB Top Quality Full Stainless Steel 4 Burner Hob, with Cast Iron pot holders and fully adjusting knobs

	DELTA HG015 5 BURNER GAS HOB Quality Full Stainless Steel 5 Burner Hob, with Cast Iron pot holders and fully adjusting knobs

REMEMBER, WE ALSO HAVE A FULL RANGE OF PEX FTTINGS AND PIPING FOR INSTALLATIONS

Dual Change Over Set

Pigtail

Regulator wall Bracket

Not applicable

4 KG Vented Industrial Regulator

Not applicable

Gas Shut off Valve

Not applicable

3/8” to 15mm Copper Crimp

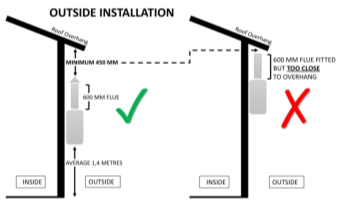

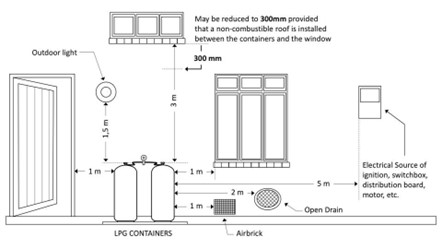

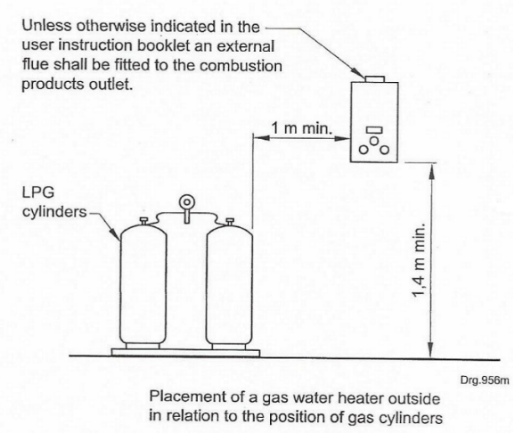

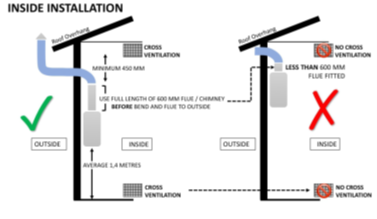

IMPORTANT INFORMATION FOR INSTALLING GAS GEYSERS



	REMEMBER …’D’ TYPE UNITS MAY ONLY BE INSTALLED OUTSIDE If you should install incorrectly, you would be liable for manslaughter/jail time should anyone die from carbon monoxide poisoning if unit is fitted inside. ‘B’ Type unit may be fitted inside or outside, BUT the flue must be fitted. If you should install inside and not fit the flue, the unit will cut out. If you remove the flue sensor to stop it cutting out, you will also be setting someone up to die (as above)
